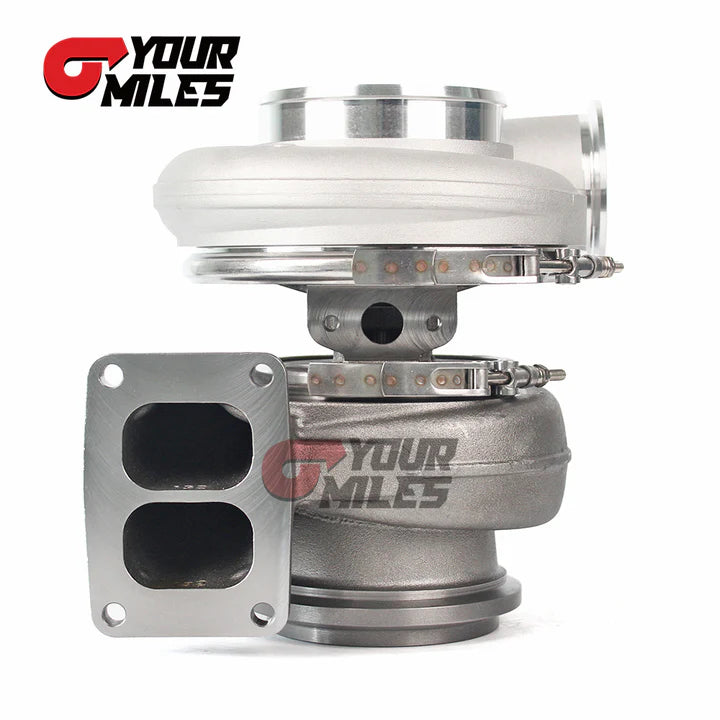

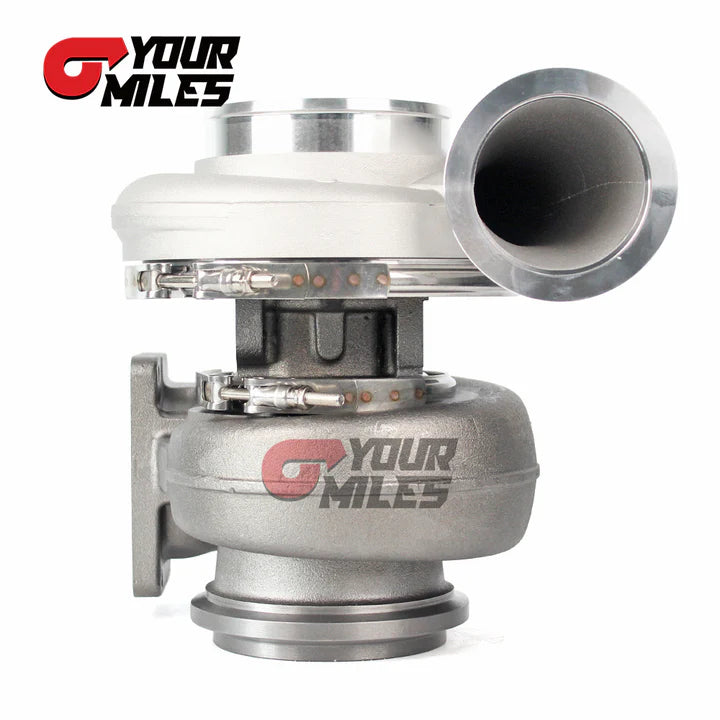

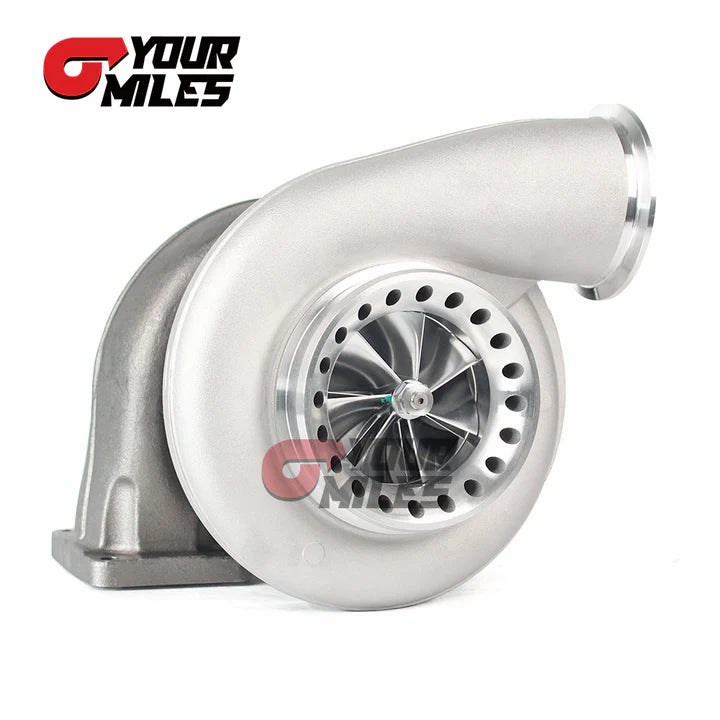

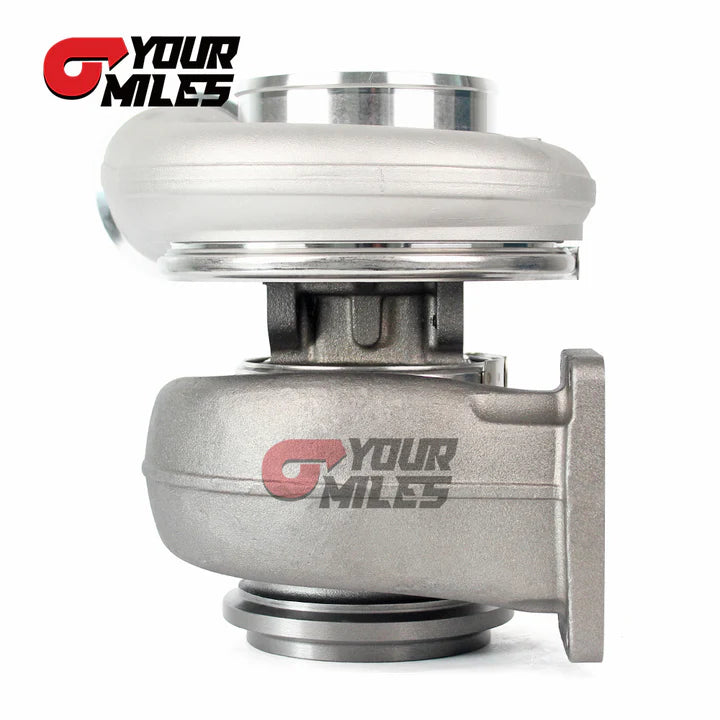

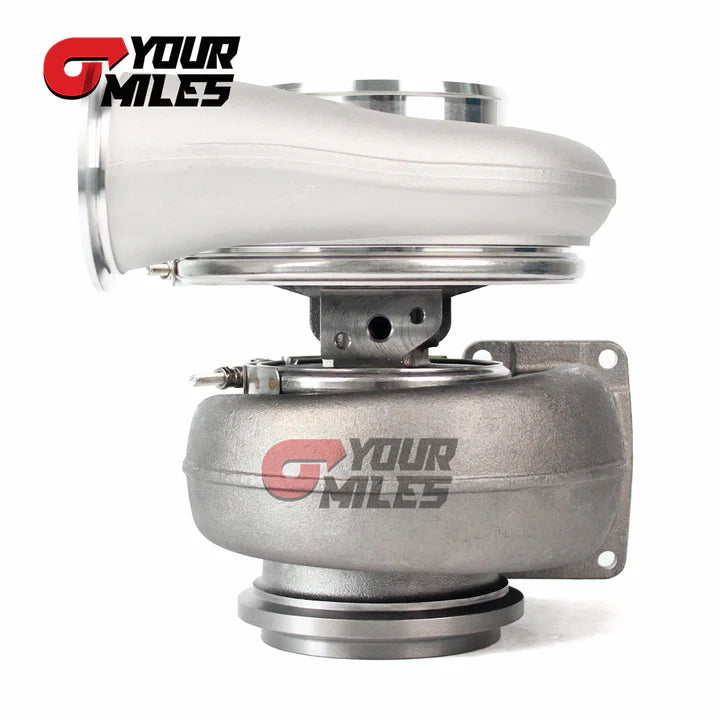

Compressor: Tip rated over 105lb/min,recommended for use in high flow 650-1350HP applications. Billet Comppressor Wheel: 88mm/117mm with tapered tip technology(124.5mm) Compressor Housing: 5.51" ported anti-surge air inlet / 4.21" charge pipe outlet

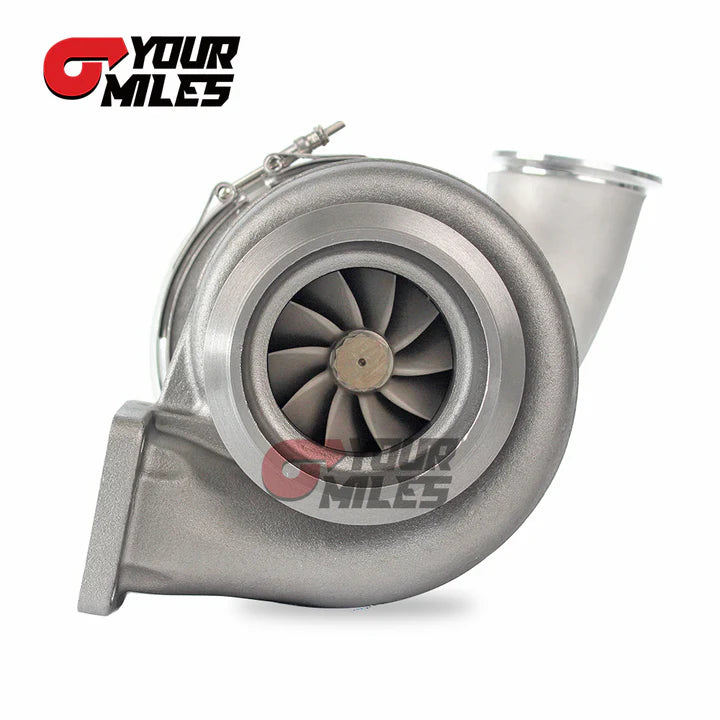

Turbine Wheel: 96mm/88mm Cast Inconel Material for high-temperature operation Turbine Housing: 1.32 A/R T6 twin-scroll Inlet,5.75" V-Band outlet
Features: 1.Twin hydrodynamic journal bearings 2.Extended tip technology Billet compressor wheel 3.Recommend application horsepower: 650-1350HP 4.Fit Vehicle: Universal turbo for performance use,racing car etc; 5.If boost pressure higher than 2.5 Bar,it will significantly reduce the turbo lifespan and may result in damaging of you engine. 6.Reference Turbo P/N: 171702
